Products

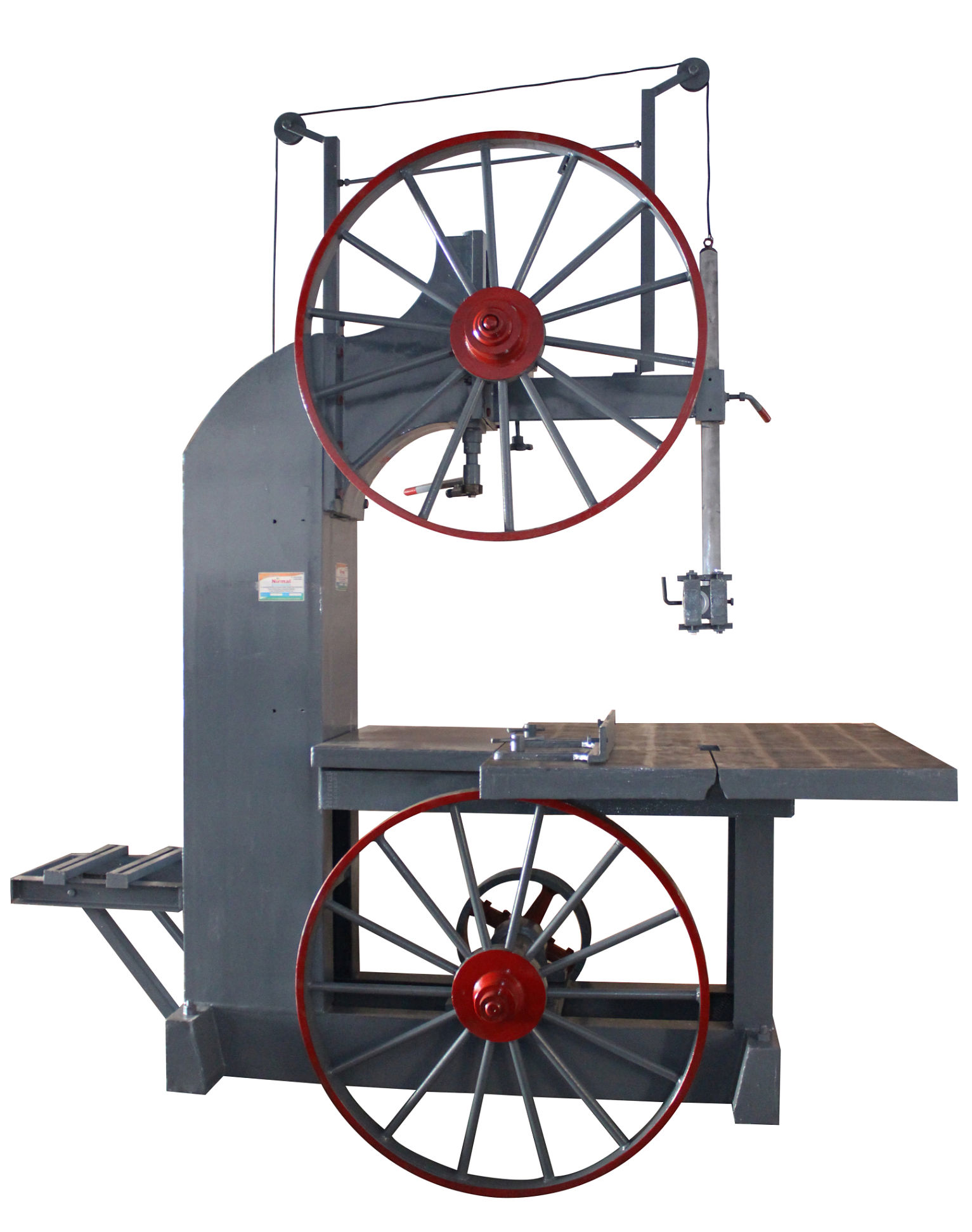

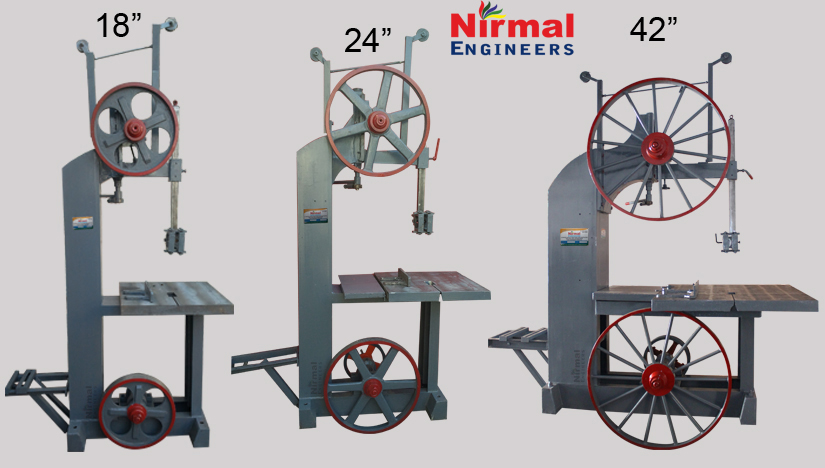

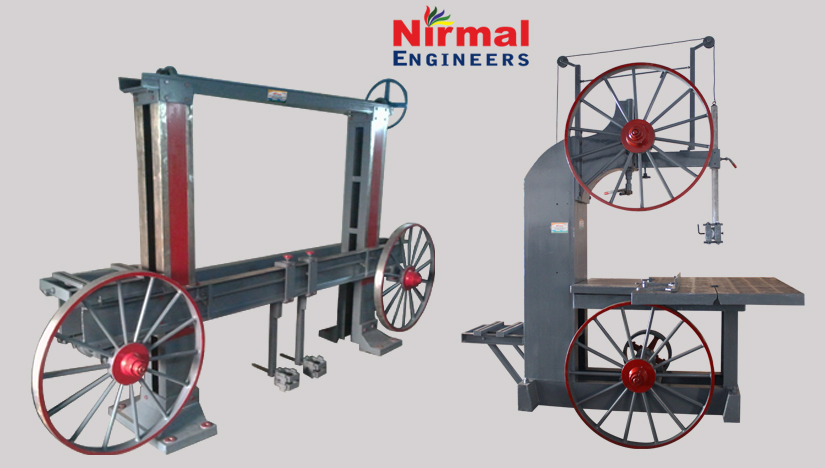

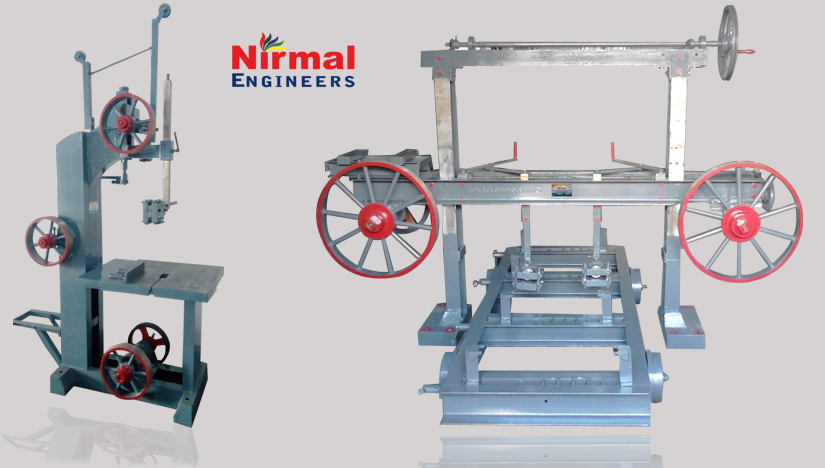

Vertical Bandsaw Machine


Description :

Band Wheels : Wheels are made of best quality steel. Each is fitted in steel spodes of 3*1 diameter per engineering view. The wheel finishing is imparted by the grinding machine to the imfuse accuracy, balancing and durability therein.

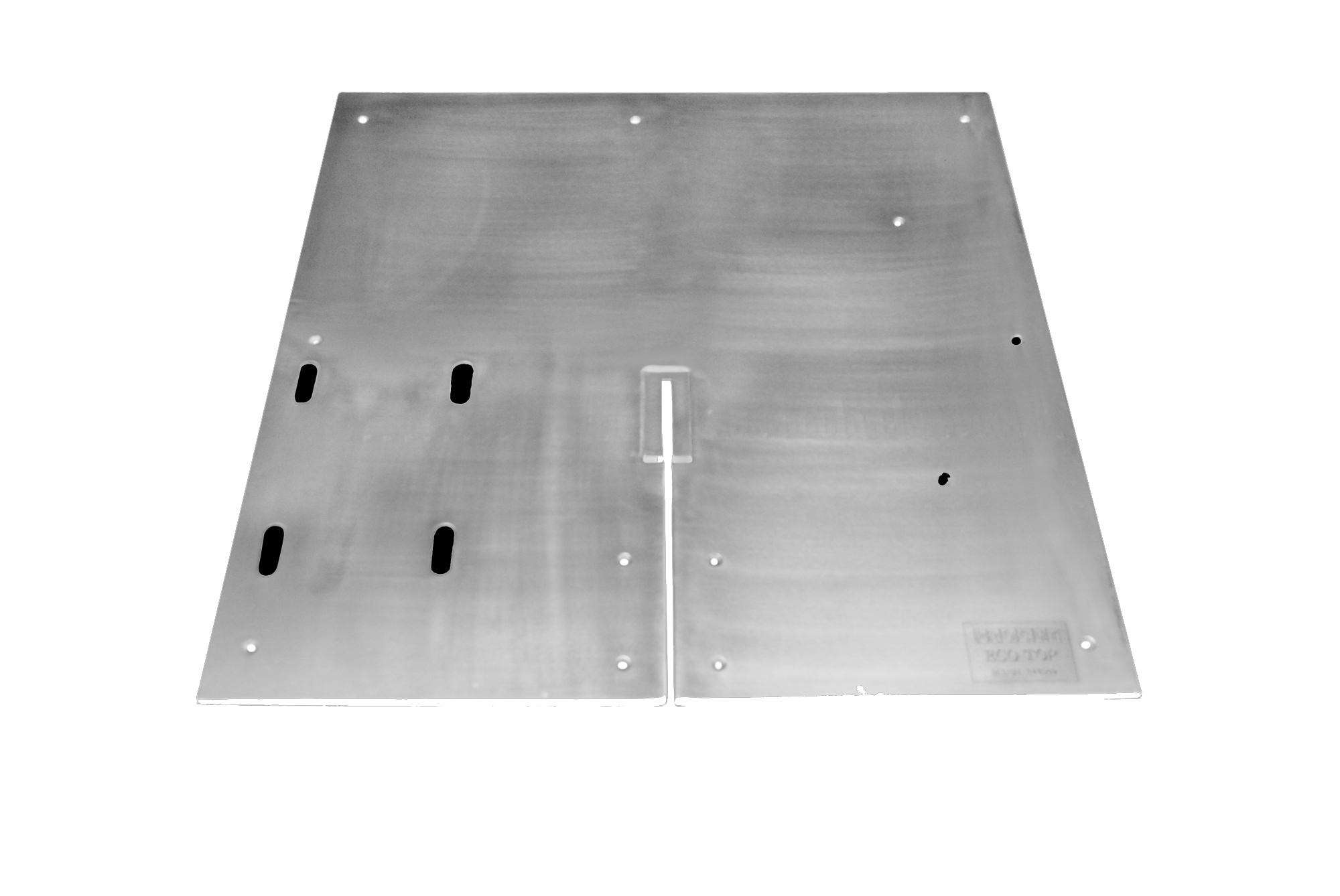

Cast Iron Table : Extra heavy graded cast table finaly machined to reduce friction.


Wheel Saft body : Made from M.S Casting and turning by CNC Machine.

Model/Size 18 24 30 36 39 42
Wheel Size 18 24 30 36 39 42
Table Size 24*24 24*24 or
30*30		 30*30 36*36 42*42 42*42
Blade Length 15'6" 16'8" 18'6" 19'6" 22'9" 23'3"
Power Req Motor (HP) 5 5 7.5 10 12.5 to 15 12.5 to 15
Wheel (RPM) 600 600 500 500 540 540

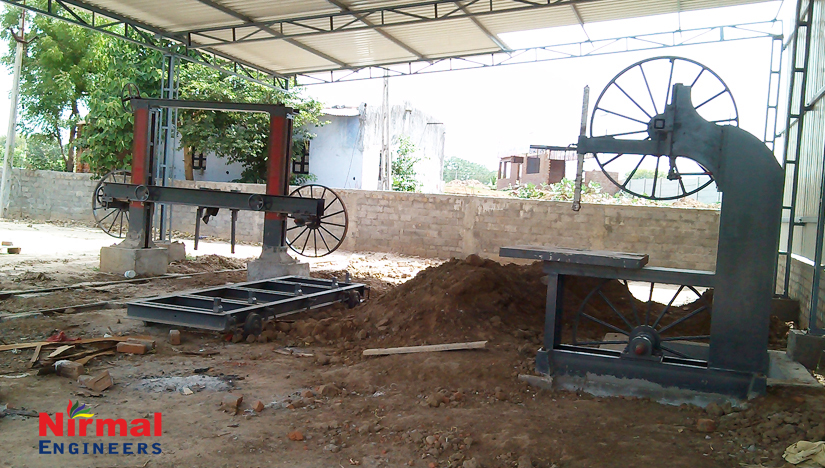

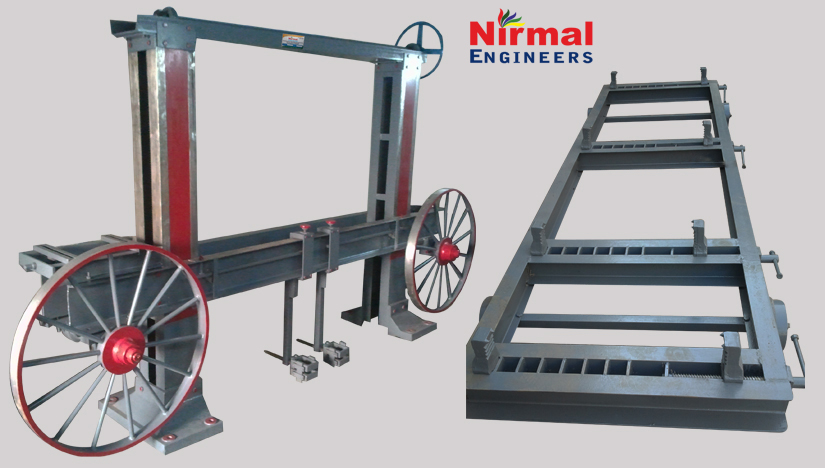

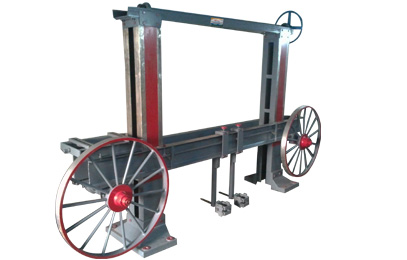

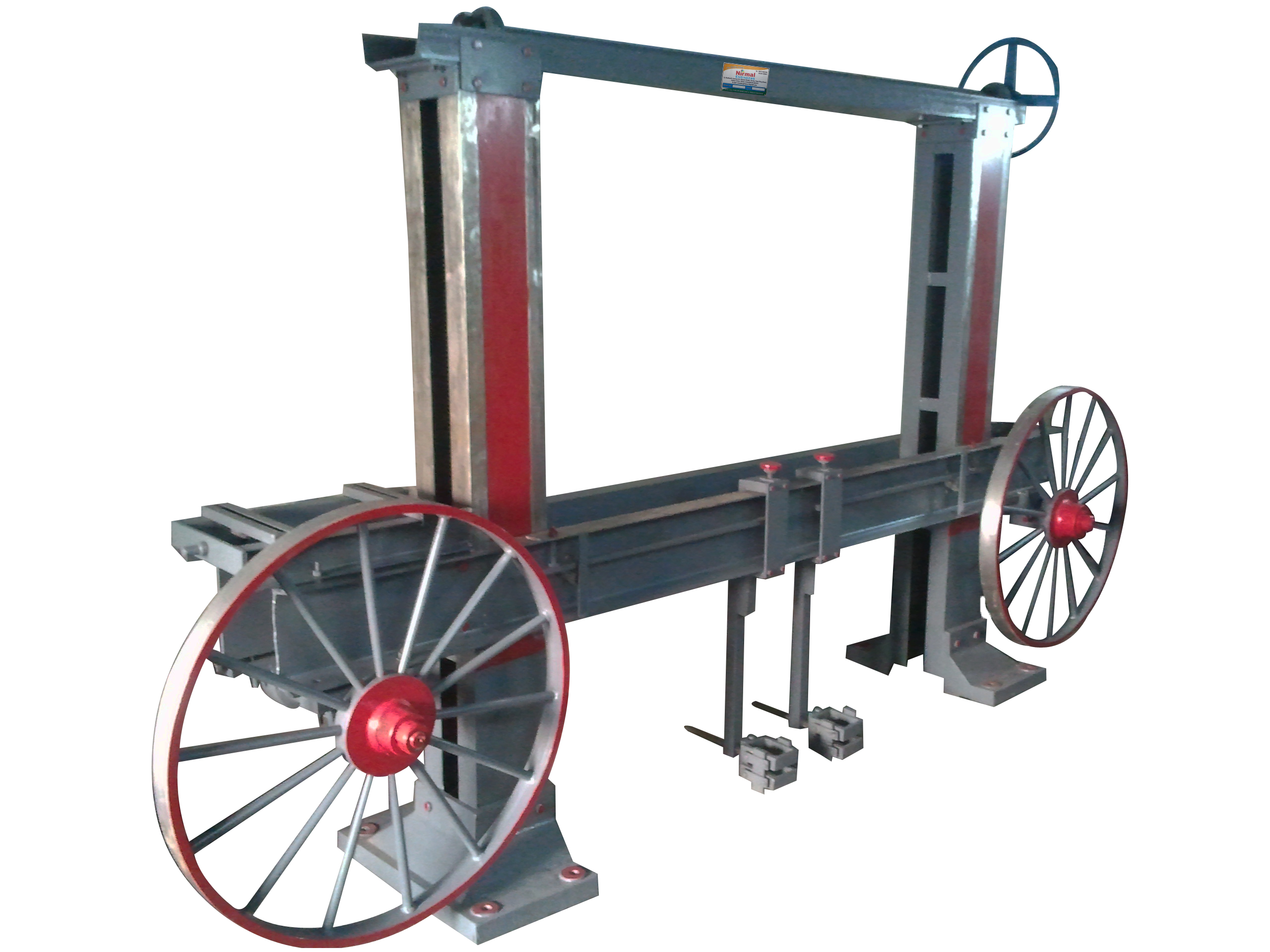

Horizontal Bandsaw Machine


Description :

Band Wheels : Wheels are made of best quality steel. Each is fitted in steel spodes of 3*1 diameter per engineering view. The wheel finishing is imparted by the grinding machine to the imfuse accuracy, balancing and durability therein.


Wheel Saft body : Made from M.S Casting and turning by CNC Machine.

Model/Size 23/24 30 36 39 42 48
Wheel Size 24" 30" 36" 39" 42" 48
Blade Length 26'
Motor 7.5 7.5 10 12.5 to 15 12.5 to 15 15

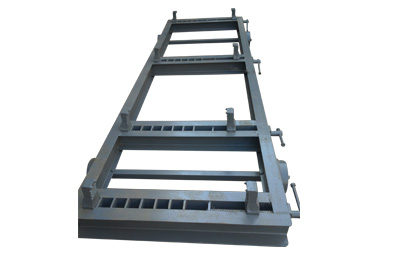

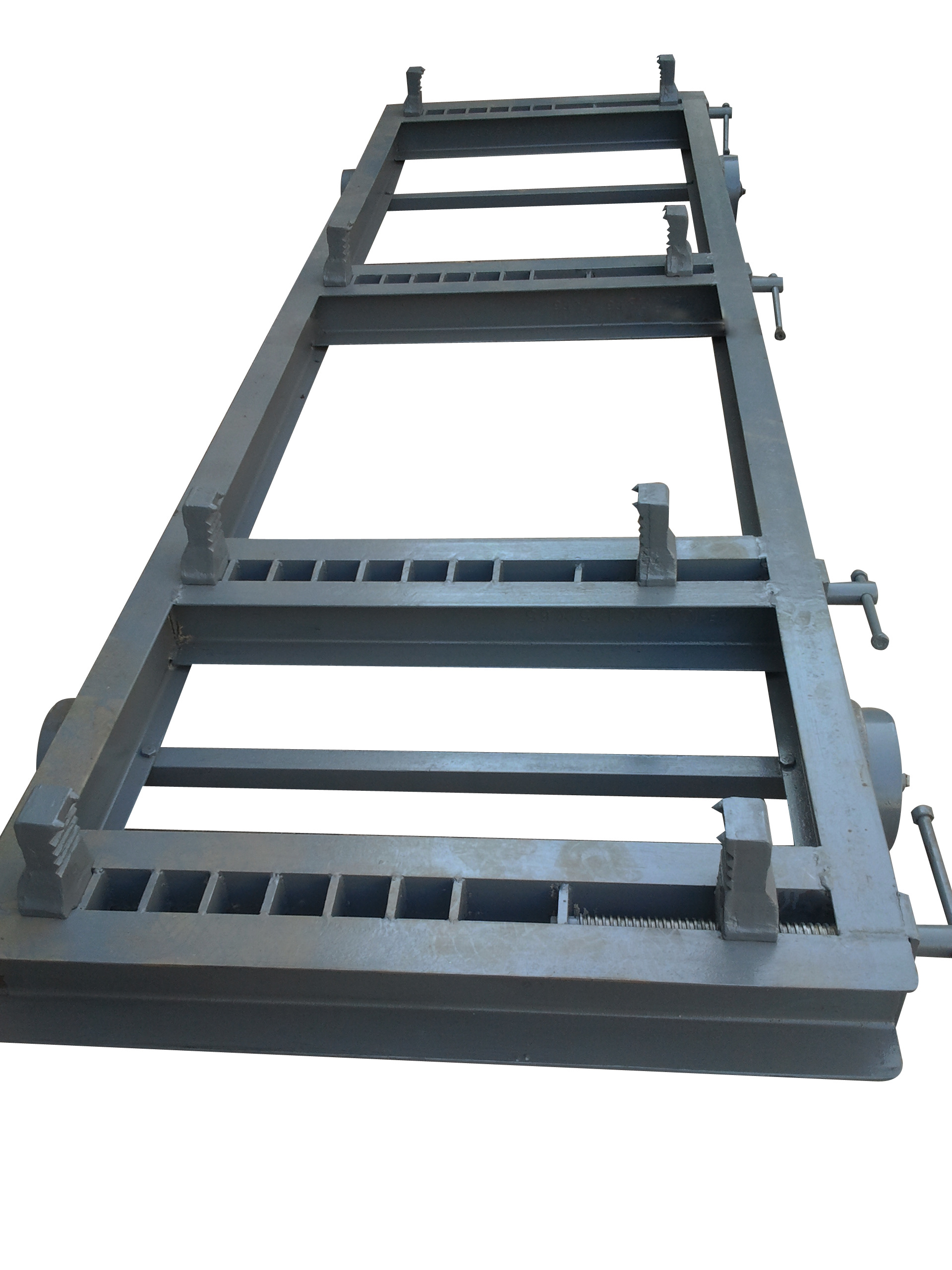

Trolly Size 8'*3' or
6'*211		 8'*3' 10'*3' or
12'*3.5'		 12'*3.5' 12'*3.5' or
16'*4'		 16'*4'

Circular Saw Table


Types :

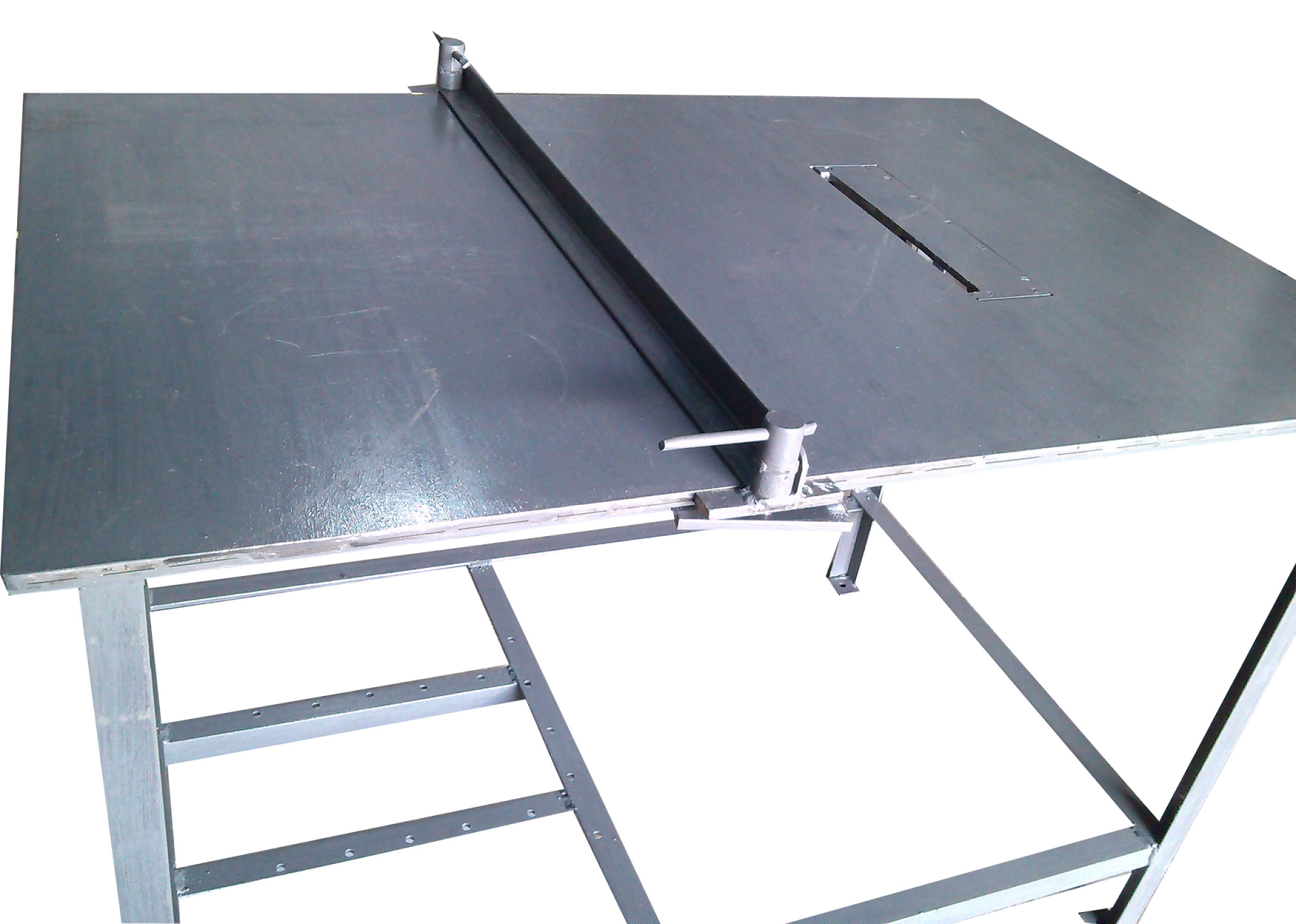

(1) Circular Saw Table Fix Top

(2) Circular Saw Table with Trolly

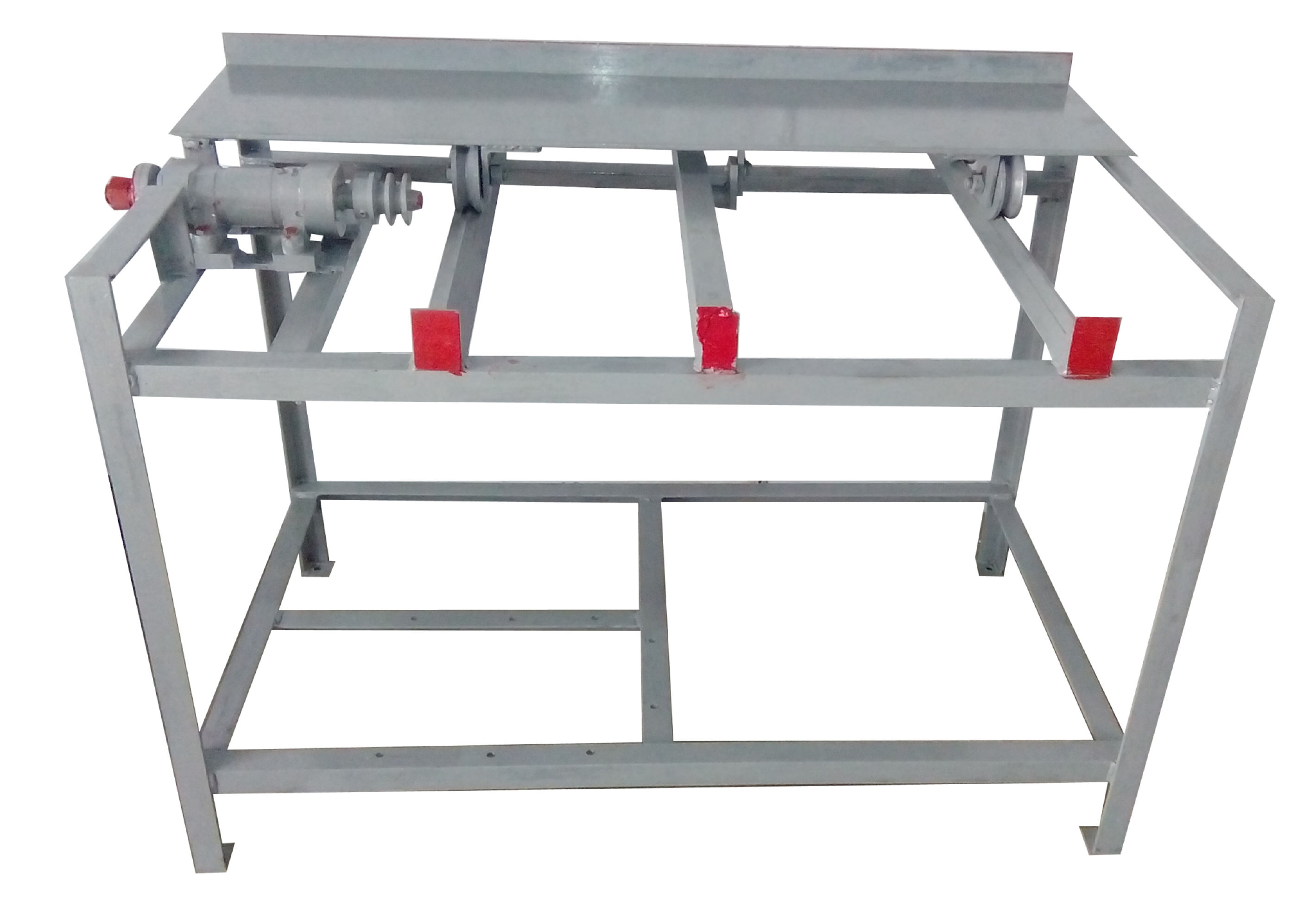

(3) Circular Saw Table with Linear Bearing Sliding


Description :

Usefull for wooden stick and cutting

Trolly Size :- As your choice.

Frame Size :- As your choice.

Power :- 1 to 2hp motor.

Machine will be supplied without Saw Cutter and Electric Motor.
